Automation & power system solutions

Products & solutions:

Power Systems (PSA/SCADA/DMS/RTU/SAS) execution and support:

WESCOSA provides a complete supervisory control and monitoring solution for local substation equipment (HV GIS, MV/LV Switchgear/Control gears, Protection Relay Panels, VFDs, UPS, Battery Chargers, HVAC Systems, Fire Alarm Systems etc.) and remote substations as well. In this regard, project-specific configuration and parameterization of SCADA/HMI application software are accomplished by our certified Automation Engineers.

Our Solutions include:

• System Integration for SCADA/RTU & Substation Automation Systems.
• SCADA Adaptation Works/Interface Panels (SIP/CCC/DMS) complete with transducers, interposing relays, and terminals to meet defined I/O and Technical Specs.
• Total solutions for integrating new substations to existing LDC/DMS centers and modification of existing protection schemes for integration to control centers.
• Engineering & Operator Workstation HMI’s for RTU/SCMS solutions.
• Substation bay level control, metering & monitoring systems
• SDH/PDH telecommunication networks
• Engineering of SCADA/RTU/SCMS automation projects including CAD facility
• In-house manufacturing of cubicles and racks for all automation applications as per IEC and other relevant standards
• Upgrading/Replacement of Control Systems for Standby Generators at Critical Locations – RGCP, AMF, LMS, RGMS & ATS equipment.
• Maintenance & retrofits.

Advanced Metering Infrastructure (AMI System):

WESCOSA provides a complete supervisory control and monitoring solution for local substation equipment (HV GIS, MV/LV Switchgear/Control gears, Protection Relay Panels, VFDs, UPS, Battery Chargers, HVAC Systems, Fire Alarm Systems, etc.) and remote substations as well. In this regard, project-specific configuration and parameterization of SCADA
Advanced Metering Infrastructure (AMI) is an integrated system of smart meters, communications networks, and data management systems that enable two-way communication between smart meters and master data management (MDM) center.

WESCOSA AMI system is designed and manufactured to meet various end clients' requirements and standards, for instance, 40-TMSS-03, 31-TMSS-01, and 01-TMSS-01 of National Grid / Saudi Electricity Company.

Features of AMI System

• Microprocessor-based Power Quality Meter and Revenue Meter.
• 0.2 S class accuracy of Revenue and Power Quality meter under all operational conditions.
• Protocols
• Both freestanding type and wall mounting type panel designs are available.
• Both Fixed and Swing type 19’’ rack construction are available.
• Glazed door for floor mounting type panel.
• Power quality values as per grid application needs.
• For all networks, voltages, and currents.

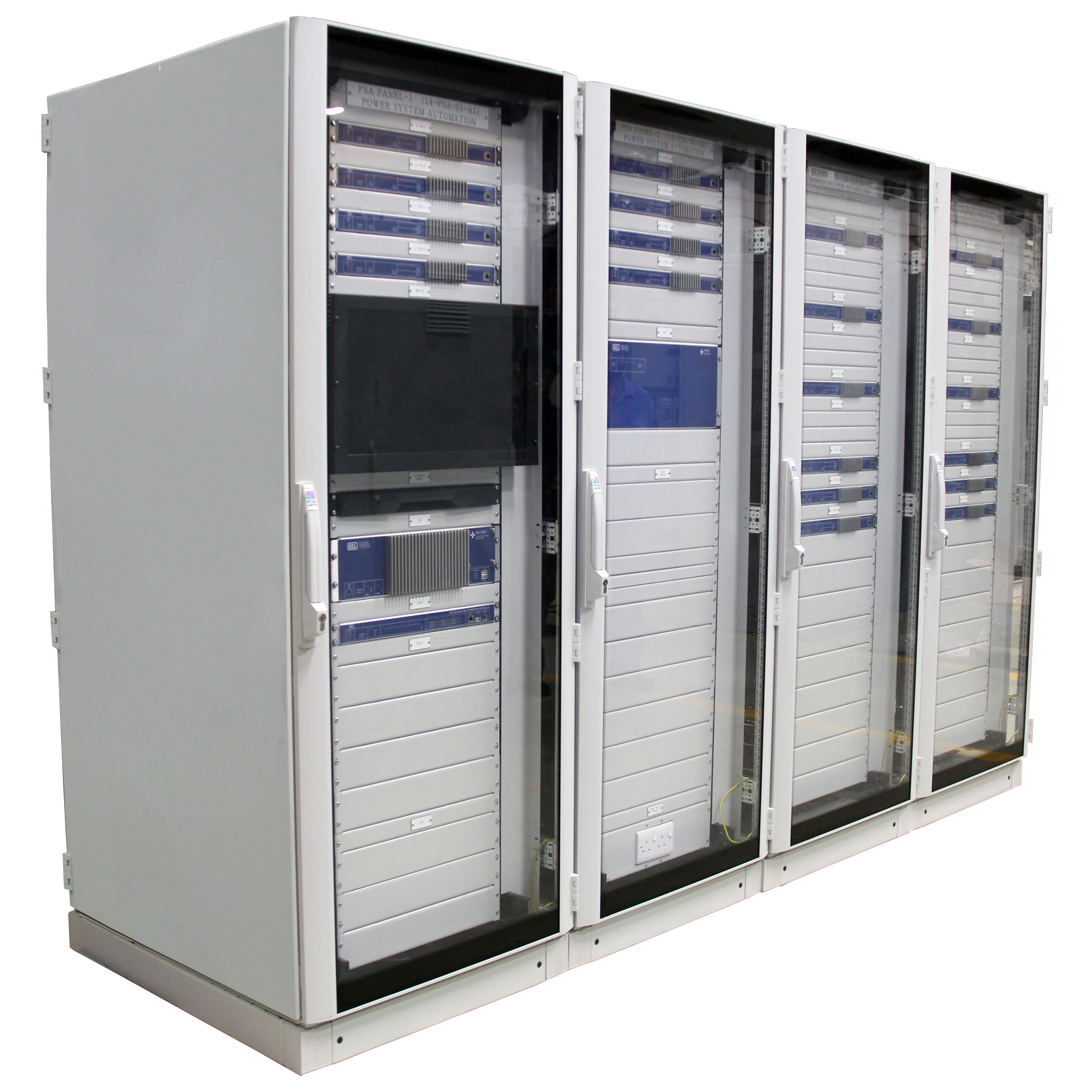

WESCOSA Automation Panels and Consoles:

WESCOSA provides a complete supervisory control and monitoring solution for local substation equipment (HV GIS, MV/LV Switchgear/Control gears, Protection Relay Panels, VFDs, UPS, Battery Chargers, HVAC Systems, Fire Alarm Systems etc.) and remote substations as well. In this regard, project-specific configuration and parameterization of SCADA.

The professional capabilities/expertise required for the design & manufacturing of Power System Automation (PSA) panels are derived from our decades owned rigorous engineering Know-how, extensive manufacturing experiences, quality workmanship, and the latest technological developments which are being utilized in integrated fashion during the process of design, fabrication, painting, assembling and wiring of these panels. These well-established practices thus ensure that the finished product fully conforms to the customer’s specifications and standards.

In this regard, high standards are maintained in the selection of various major components to be incorporated into the Panels along with other related instruments and devices meant for ancillary functions so that compatibility is always ensured amongst all the components in the Panels. All these components are subjected, continually, to a process of technical evaluation regarding their performance. Some of the prime aspects of focus are their Reliability, Security, Speed of operation, Climatic Compatibility, and appropriateness for the specific application. These practices ultimately yield a high level of performance of the whole equipment, thereby exceeding the maximum field requirements and code of practice.

WESCOSA automation panels and consoles are manufactured as per national and international standards, for instance, 16-SAMSS-514, 34-SAMSS-820 of Saudi Aramco and 31-TMSS-01, 01-TMSS-01 of National Grid (SEC), and others. The Panel design is optimized with the help of CAD tools, like AutoCAD, Microstation, ELECDES, etc.

Panel Specifications

Degree of Protection:             IP55 / IP51/IP44

Panel Structure:                        Multifold Steel Sheet

Panel Front:                                Lockable glazed Door with 3/4 mm Tempered glass, 120 º /180º hinges.

Panel Rear:                                  Lockable door (steel sheet), 120 º /180º hinges with Door Stopper or fixed rear cover.

Panel Sides:                                Removable cover plates (steel sheet)

Panel Top:                                   Removable roof plate, one piece solid

Panel Design Assembly:         19’’ Rack mounted, Fixed mounting angle or Swing Frame

Cable Entry:                                Top / Bottom (For external field cables) & opening on sides (if required) for Internal wiring.

Gland Plates:                              3 un-drilled gland plates mounted on the base frame (Steel Sheet/Aluminum).

Automation & PSS Services:

WESCOSA Automation and Power System Solutions (APSS) department provides a wide range of engineering solutions and services in the field of Power System Automation / Substation Automation Systems / PMCS/ EPMS / Power Monitoring System / Industrial Automation / Building Management.

Automation Services Capabilities:

Protection and Control logic configuration of all types of IEDs of various Brands, for instance, Siemens, ABB, GE, Alstom, SEL, Schneider, etc... Configuration of Bay Control Units (BCUs) up to 380 KV voltage level. Testing and Commissioning of the complete Automation system. Offsite and Onsite HMI/SCADA software configuration and Testing. Commissioning & troubleshooting of existing PSA / SAS / PMCS / EPMS / PMS systems. Implementation of various industrial protocols, for instance, Modbus RTU, Modbus TCP/IP, DNP3, ION-Enterprise, INCOM, GE Harris, IEC 60870-5-101/103/104; the latest among these is IEC 61850, including GOOSE Message and MMS in IEDs. Other Engineering Services for Power System Solutions.


Automation Software Tools
The following software tools are being utilized by APSS Engineers in automation projects.

• SCADA/HMI Software
• Zenon by COPA-DATA.
• ClearView by ReLab.

Survelant by

• WONDERWARE INTOUCH by Schneider Electric (Invensys)
• Micro-SCADA Pro 800xA by ABB
• GE-Power
• GE-Cimplicity
• ION-Enterprise
• SMP
• RTAC

Operating & Application Platforms

• Windows 7 / 10,
• Microsoft Server 2012 R2,
• Microsoft Office 2010,

IEDs Configuration Tools

• PCM 600 / IET600 Tool by ABB
• Digsi by Siemens
• MICOM S1 Agile By GE Grid Solution (ALSTOM)
• GE-Enervista by GE GRID Solution
• SEL-5030 accelerator QuickSet / ARCHITECT By SEL
• SEPAM SFT4281 By Schneider Electric
• YOKUN VISUAL T&D BY EATON (Cooper Power System)
• MAP110 / MAP120 By Landis+Gyr
• Communicator EXT by Electro Industries/GaugeTech (EIG)
• Metercat Software by Elester
• Freja WIN by Megger
• Omicron Test Universe By Omicron
• Others.

Protocol Expertise:

• DNP3
• Modbus (RTU / TCP/IP
• IEC61850
• IEC60870-5-101, 104
• GOOSE – inter device
• SCADA byte protocols
• SCADA bit protocols

Training
In-depth training in Automation systems
The state-of-the-art training facility at the factory
Hands-on training laboratory with demo equipment

Our engineering expertise:

• Turnkey solutions for RTU projects,
• including site services
• HMI configuration and SAS engineering
• Control Systems for critical power installations
• Multifunction IEDs
• Bay controllers
• Software platforms
• IEC61850 inter-substation communication

We specialize in IEC-61850-based automation and protection relay systems and have developed an in-house simulator for testing communication and inter-operability of IED devices & for training purposes.

Features:

• Simulate Breakers, Switches & Events
• Multiple Vendor IEDs
• Explore Multifunctional IED features
• Validate Network Communication
• Perform point-to-point tests
• Commission HMI

WESCOSA Automation & Power System Solutions (APSS)

EATON Canada (Value Added Reseller)

Authorized System Integrator of Wonderware Products (by Schnieder Electric) & Semaphore RTU Products (by Semaphore-a Servelec Group Company).
