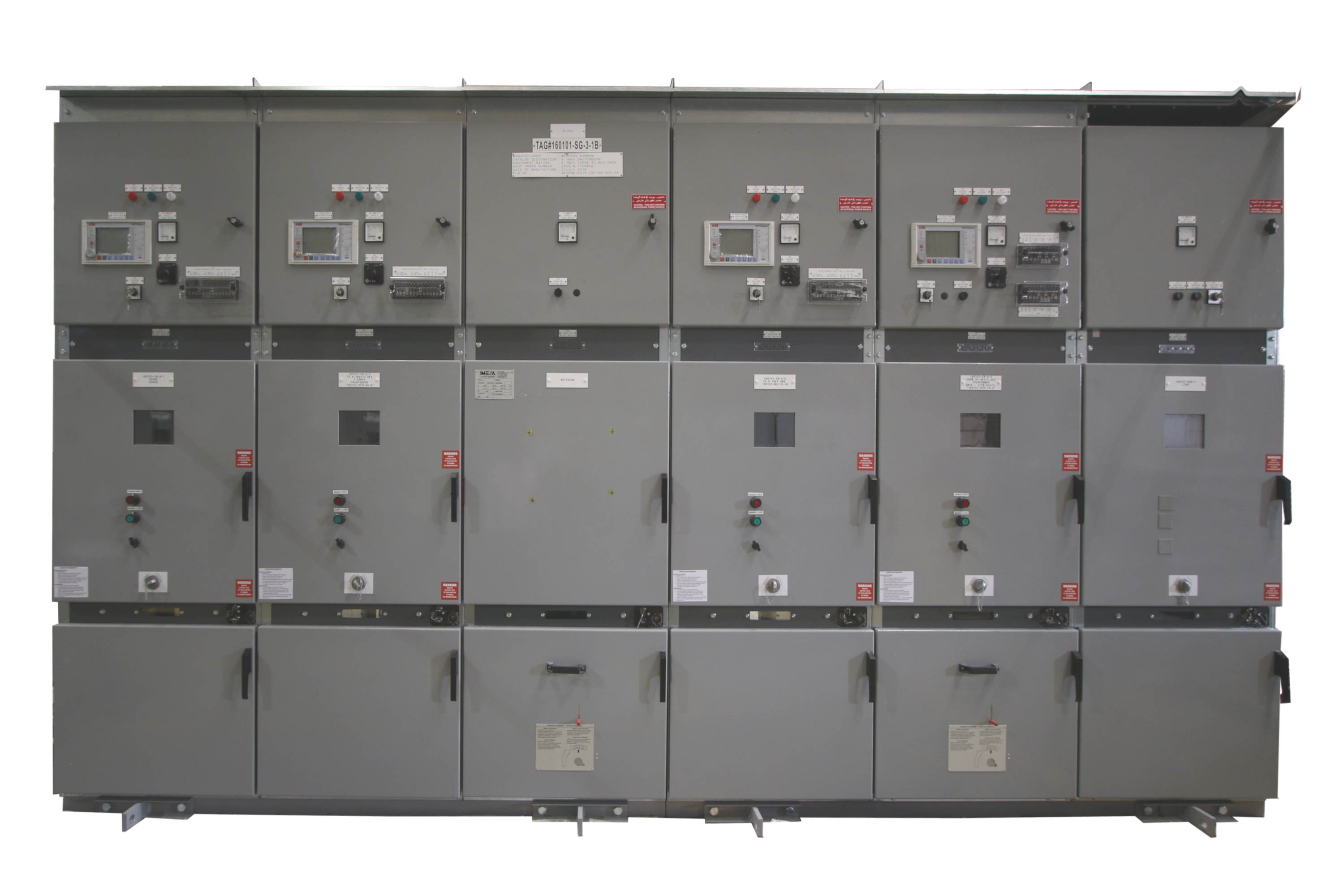

Indoor Metal-Clad switchgear

Manufactured under license agreement with Powell Industries Inc. U.S.A

Meets ANSI specifications C37.04, C37.06, and C37.20 & tested in accordance with C37.09 and C37.20

Available in 1 high and 2 high construction configurations

Available in the following rating:

• 4.16 to 15 kV
• 250 to 1000 MVA
• 1200 to 3000 Amps
• Custom designed transition sections to extend existing switchgear of any make

• Employs Allen-Bradley make vacuum contractors and isolating switches.
• Meets NEMA ICS3 specifications.
• Tested in accordance with NEMA ICS3 and UL 347 at KEMA, Netherlands.
• Available in 1- High and 2- High construction configuration.

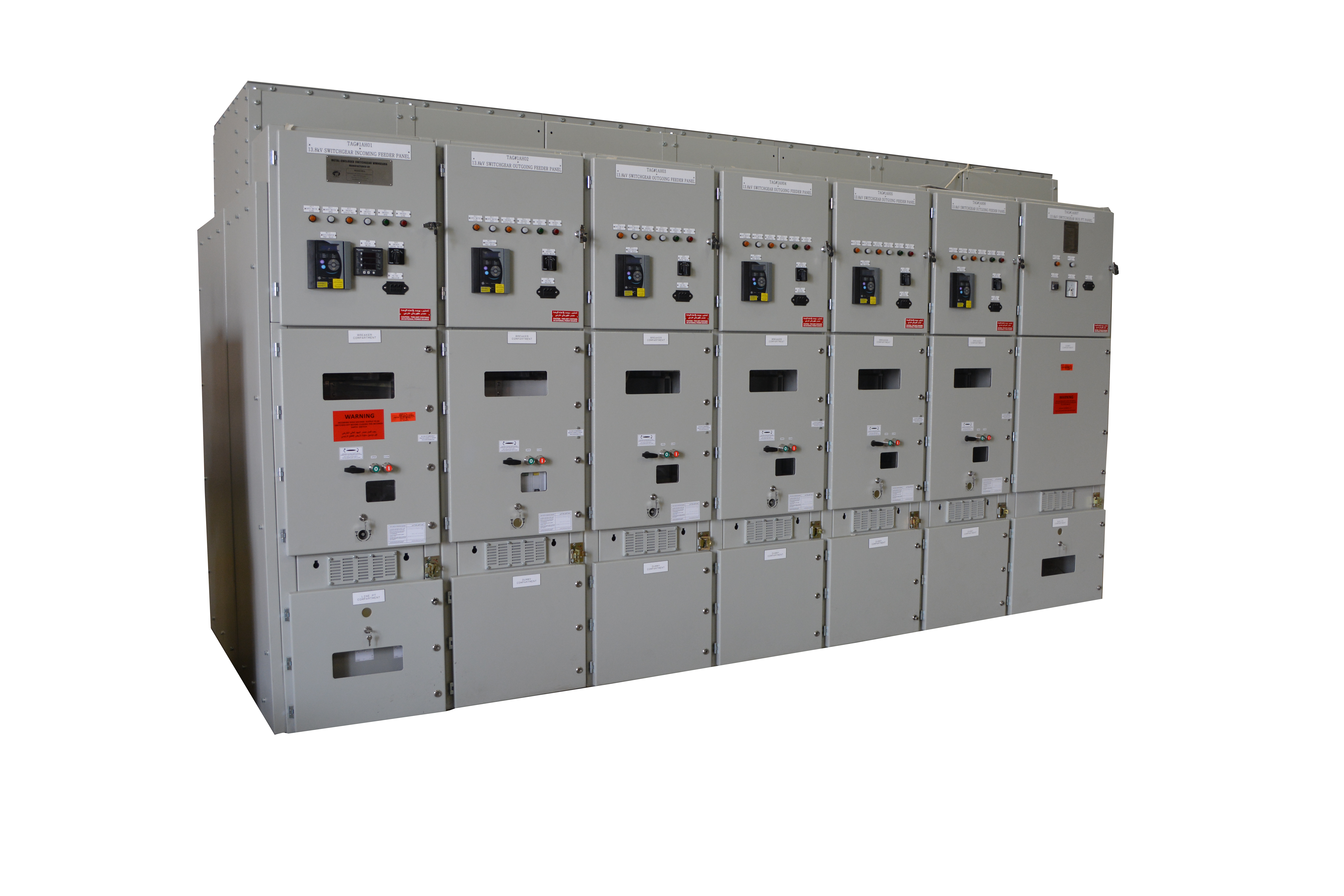

MV Metal Enclosed Switchgear

MV Metal Enclosed Switchgear

Medium Voltage Air insulated switchgear Metal enclosed switchgear - WMVGEARA  type test switchgear by using ABB VD4 Model breaker

Ratings are as follows:

• Voltage: 4.16kV to 17.5kV
• Maximum busbar rating up to 4000A with Forced cooling
• Short-time withstand current Up to 50 kA rms / 3sec
• Internal arc classification 50 kA / 1 sec

Features:

• Internal Arc resistant enclosure tested for 25 kA for 1sec with accessibility type AFLR in accordance with IEC62271-200
• Loss of Service Continuity Factor of LSC2B
• "Higher number of switching operations and minimal maintenance for the switching element, since vacuum technology is employed
• Optional delay ride-through availabke in request.
• Integral earthing switch with fault making capacity.
• Busbars Insulated by epoxy coating for Full Rated Voltage.
• Suitable for SEC Utility, Oil & gas, petrochemicals, mining, metals, minerals, water and wastewater treatment, food & beverage, pharmaceuticals, microelectronics, airports...

MV Metal Enclosed Switchgear

Medium Voltage Air insulated switchgear Metal enclosed switchgear - HMS under license agreement with hyundai electric, south korea

Ratings are as follows:

• Voltage: 4.16kV to 17.5kV
• Maximum busbar rating up to 4000A with Forced cooling
• Short-time withstand current Up to 50 kA rms / 3sec
• Internal arc classification 50 kA / 1 sec

Features:

• Internal Arc resistant enclosure tested for 50 kA for 1sec with accessibility type AFLR in accordance with IEC62271-200
• Loss of Service Continuity Factor of LSC2B
• Higher number of switching operations and minimal maintenance for the switching element, since vacuum technology is employed
• Integral earthing switch with fault making capacity.
• Busbars Insulated by epoxy coating for Full Rated Voltage
• Suitable for Oil & gas, petrochemicals, mining, metals, minerals, water and wastewater treatment, food & beverage, pharmaceuticals, microelectronics, airports...

MV Metal Enclosed Switchgear

Medium Voltage Gas insulated switchgear Metal enclosed switchgear - HMGS under license agreement with hyundai electric, south korea

Ratings are as follows:

• Voltage:  17.5kV to 36/38 (40.5) kV
• Maximum busbar rating up to 3150A
• Short-time withstand current Up to 40 kA rms / 3sec
• Internal arc classification 40 kA / 1 sec

Features:

• Internal Arc resistant enclosure tested for 40 kA for 1sec with accessibility type B FLR in accordance with IEC62271-200
• "Factory-assembled panels with insulating gas at operating
• pressure requires no SF6 work on site."
• Operating mechanism is accessed from outside of gas compartment
• Panels coupled by plug-in connecting system
• Extension capability to existing systems on both sides
• Switchgear of SF6 gas insulation gives space-saving compactness
• Suitable for Oil & gas, petrochemicals, mining, metals, minerals, water and wastewater treatment, food & beverage, pharmaceuticals, microelectronics, airports...
