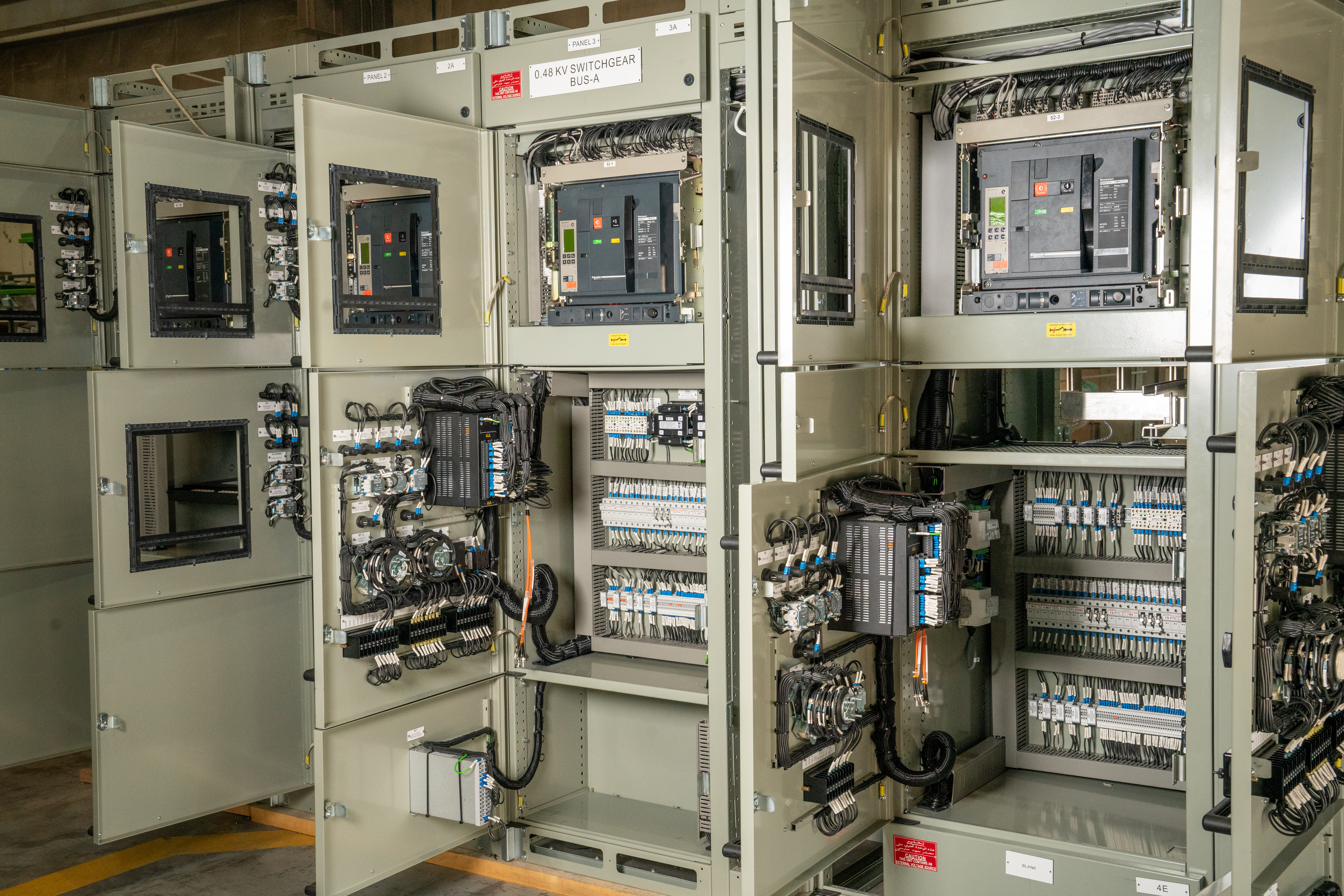

Metal Enclosed Switchgear

Blokset-Type D LV Switchgear is designed, constructed, and tested in accordance with IEC 61439-1&2 and Internal Arc as per IEC TR 61641 under license agreement with Schneider Electric (Platinum agreement)

Ratings are as follows:

• Voltage Up to 600 Volts AC, 3-wire, 4-wire
• Maximum busbar rating up to 7000 A, Incomers up to 6300 A
• Short-time withstand current (ICW) Up to 100 kA rms / 1sec
• Internal arc containment up to 100 kA / 0.4 sec

Features:

• Forms of internal separation up to 4b
• 2G version available for seismic or high vibration environment
• Single front, double front access, back-to-back configuration, top or bottom direct power connections, rear or side power connections for easy installation.
• Suitable for Oil & gas, petrochemicals, mining, metals, minerals, water and wastewater treatment, food & beverage, pharmaceuticals, microelectronics, airports

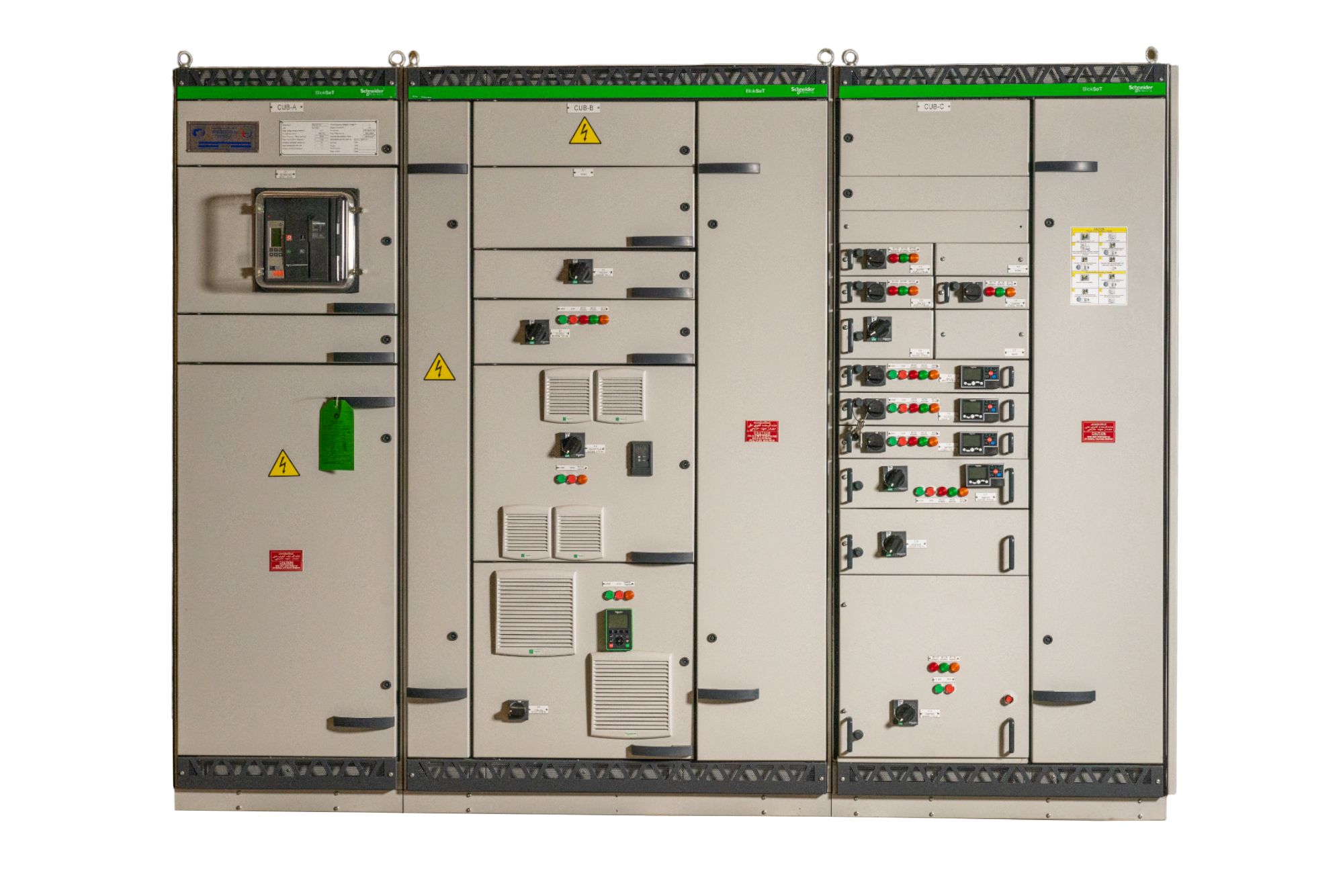

Motor Control Center

 LV Motor Control Centre – Draw out / Fixed

Blokset-Type MW2 LV Switchgear is designed, constructed, and tested in accordance with IEC 61439-1&2 and Internal Arc as per IEC TR 61641 Add under license agreement with Schneider Electric (Platinum agreement)

Ratings are as follows:

• Voltage Up to 600 Volts AC, 3-wire, 4-wire
• Maximum busbar rating up to 7000 A, Power Feeders up to 6300 A
• Conventional starters up to 250 kW, soft starters up to 250 kW, Drives up to 160 kW
• Short-time withstand current (ICW) Up to 100 kA rms / 1sec
• Internal arc containment up to 100 kA / 0.4 sec

Features:

• Forms of internal separation up to 4b
• Enhanced control and monitoring. Fixed, disconnect able or withdrawable functional units
• 2G version available for seismic or high vibration environment
• Single front, double front access, back-to-back configuration, top or bottom direct power connections, rear or side power connections for easy installation.
• "IPMCC (intelligent Power and Motor Control Centre) is a highly capable and advanced smart solution for fault prevention, protection, and automatic restart. It helps improve energy efficiency and reduce downtime for continuous and critical processes.

Main , Sub & Final Distribution Board

Applications: Protection of whole Low Voltage Electrical Power Networks connected to a power source Panel assemblies in conformance with requirements of IEC 61439-1&2 for LV Switchgear Assemblies and ASTA certified.

Ratings are as follows:

• Voltage Up to 600 Volts AC, 3-wire, 4-wire
• Maximum busbar rating up to 7000 A, Incomers up to 6300 A
• Short-time withstand current (ICW) Up to 100 kA rms / 1sec
• Internal arc containment up to 100 kA / 0.4 sec

Features:

• Forms of internal separation up to 4b
• Suitable for Fixed/ Draw out / Plug-in type breakers.
• Modular Enclosures extendable on both sides providing versatility for future extensions in case of Form-4 Panels.
• Enclosure IP from IP41 up to IP54.
• Available for Seismic or high vibration environments.
• Enhanced with Smart devices and thermal monitoring solutions.

Sub Main Distribution Board

Applications: Protection of Low Voltage Electrical Power Networks downstream from Main LV Panels. Panel assemblies in conformance with requirements of IEC 61439-1&2 for LV Switchgear Assemblies and ASTA certified.

Ratings are as follows:

• Voltage Up to 600 Volts AC, 3-wire, 4-wire
• Maximum busbar rating up to 800 A, Incomers up to 800 A
• Short-time withstand current (ICW) Up to 50 kA rms / 1sec

Features:

• Panels are Wall Mounting/Floor mounting, Front Access in Form 2 / Form-4, as per Customer requirement
• Ambient temperature up to 50 °C
• Enclosure IP from IP41 up to IP56. Special enclosures for saline area/ industrial applications
• Cable entry options available for TOP or BOTTOM

Final Distribution Board

Applications: Final Distribution of Electrical Power to various loads in Consumers premises.

Ratings are as follows:

• Voltage Up to 415 Volts AC, 3-Phase, 4-wire
• Maximum busbar rating up to 250 A, Incomers up to 250 A
• Short-time withstand current (ICW) Up to 17 kA

Features:

• conformance with requirements of IEC 61439-3
• Ambient temperature up to 50 °C
• Enclosure IP from IP41 up to IP56. Special enclosures for saline area/ industrial applications
• Cable entry options available for TOP or BOTTOM

AC/DC Panels

Applications: AC/DC Distribution boards to supply AC and DC power to the auxiliary equipment in high-voltage substations.

Ratings are as follows:

• Tested as per latest IEC standards
• Maximum rating up to 400A
• Suitable for Indoor, IP41

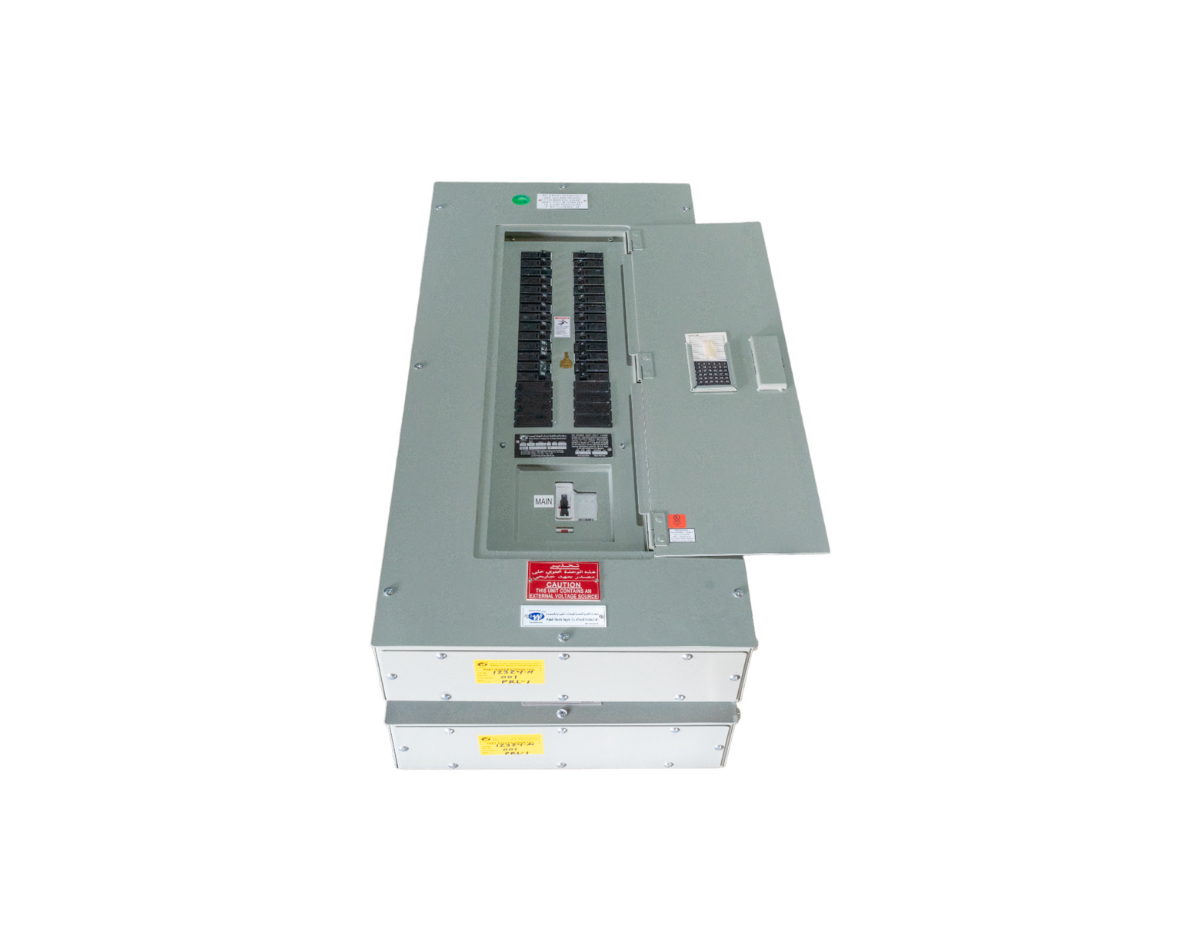

Low Voltage PanelBoards

Pow-R-Line 1, 2 and 3A – 100Amp – 600Amp Main Bus

• Standard design utilizing Series C Circuit Breakers
• Increased series ratings (with Series C Main Circuit Breakers) provide higher short circuit ratings using standard panel board breakers.
• Branch Pow-R-Line 3A can accommodate branch breakers dual mounted through 150 Amps and single mounted through 225 Amps.
• Lock and Door opening mechanism includes a positive slide catch and right or left hand installation. Surface of flush trims.
• UL tested and listed. Meets NEC and NEMA standards.
• PRL -1 240 V AC Max, 100 AF Branches,
• PRL -2 480 V AC Max , 100 AF Branches, 14kAIC at 480 V AC
• PRL -3 480 V AC Max, 150 AF Branches, 65kAIC at 480 V AC

Pow-R-Line 4B and 4F

• Pow-R-Line 4B panelboard utilizes circuit breakers.
• Pow-R Line 4F panelboard utilizes type FDPW fusible switches
• A single chassis accommodates both circuit breakers and fusible switches.
• Main and neutral are located at the same ends to provide additional space for branch devices.
• Three-piece trim facilities installations.
• Will accommodate Series C Circuit Breakers to provide higher ratings in a standard chassis and increased series ratings.
• UL tested and approved. Meets NEC and NEMA standards.
• Branch breakers combination of 100 AF, 250AF, 400AF, 600AF, 800AF, &1200AF.

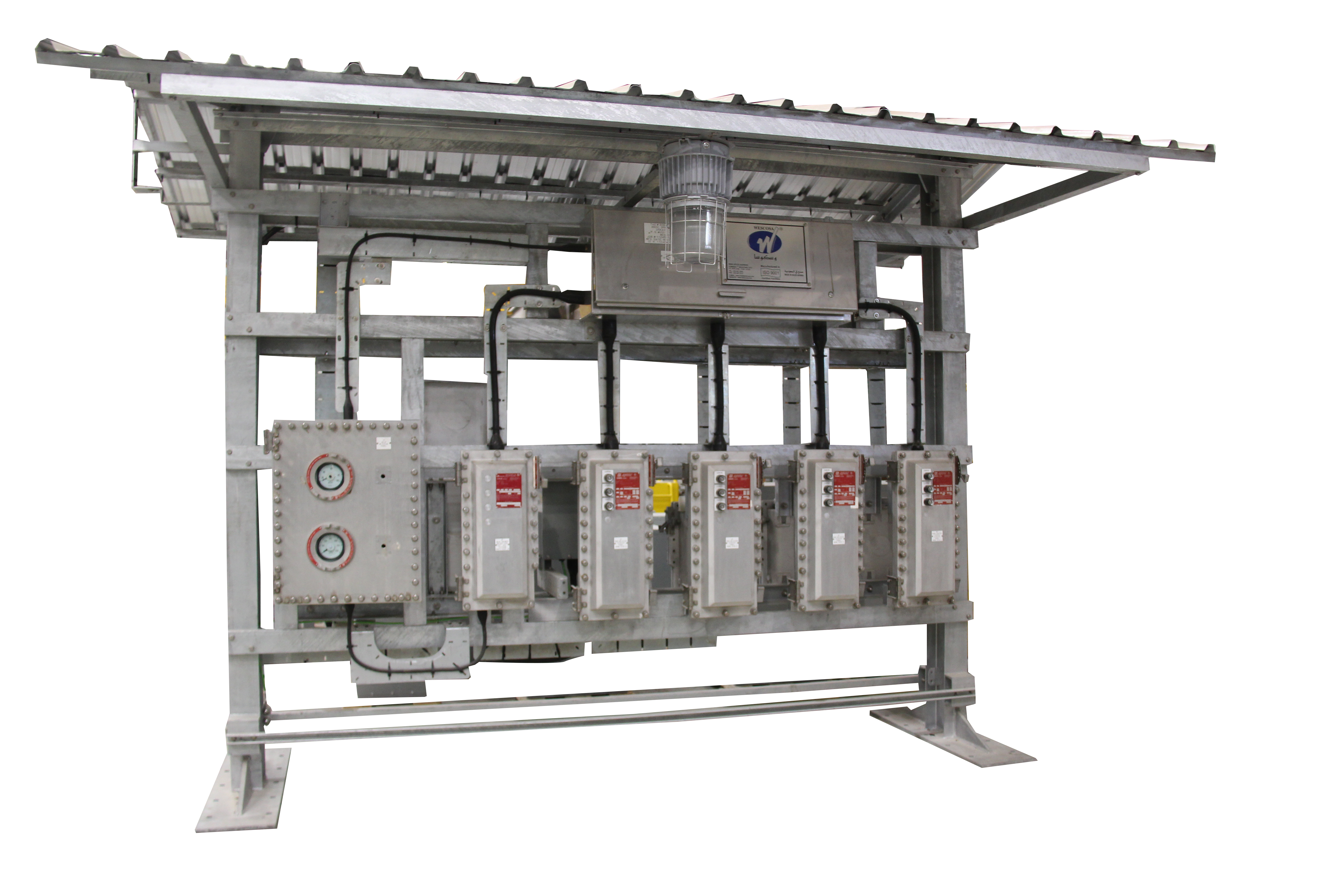

Low Voltage Switchrack

WESCOSA builds high quality, free standing; factory assembled and wired switchracks, custom-built to meet exact requirements of the customer. Structures are made of steel I-beams and C-channel members bolted and /or welded and hot-dip-galvanized. Enclosures are either painted NEMA-4, NATURAL stainless steel as NEMA-4X, natural or epoxy painted explosion proof NEMA 4/4X/7 cooper-free aluminum. Explosion-proof enclosures are from Crouse-Hinds or equally approved manufactures.

Switchracks are manufactured to NEMA, UL, CSA, and FM standards and NEC requirements, Suitable for outdoor applications in desert environment, corrosive environment and in hazardous locations.
